- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM567CN
- Part Number LM567CN
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - P (R-PDIP-T8)
- Released Date Oct 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM567CN Details
-
Manufacturer Part Number:
LM567CN
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
R-PDIP-T8
LM567CN Frequently Asked Questions (FAQs)
-
The recommended power supply voltage range for the LM567CN is 4.75V to 12V.
-
The frequency of the tone decoder can be adjusted by changing the values of the external resistors and capacitors connected to pins 3, 4, and 5.
-
The LM567CN can decode frequencies up to 57 kHz.
-
No, the LM567CN is a tone decoder IC and is not designed for encoding tones. It is typically used in applications such as DTMF (Dual-Tone Multi-Frequency) decoding.
-
The LM567CN can be interfaced with a microcontroller by connecting the output of the tone decoder (pin 7) to a digital input of the microcontroller. The microcontroller can then read the output of the tone decoder and perform the desired action.
Trust Checks
Community Provided
System Verified
Community Approved
LM567CN Overview

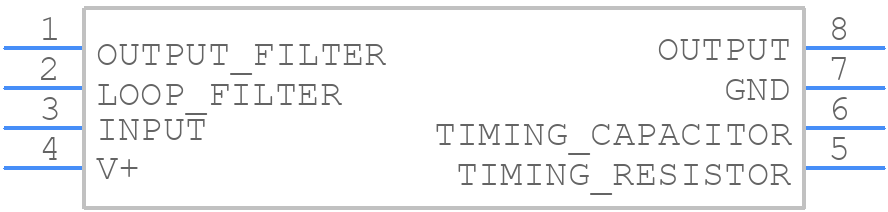

Use the download button to access the LM567CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM567,
or try a keyword search, such as Telecom Signaling Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
