LM56BIM/NOPB - Texas Instruments

Description: Dual Output Resistor-Programmable Temperature Switch

Download LM56BIM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

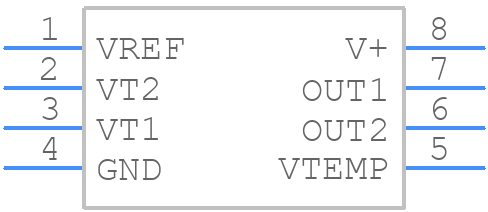

Symbol
LM56BIM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM56BIM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A SOIC
click to zoom
3D Models
LM56BIM/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A SOIC
click to zoom

LM56BIM/NOPB Details

  • Manufacturer Part Number:

    LM56BIM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.23 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Supply Voltage-Max:

    10 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM56BIM/NOPB Frequently Asked Questions (FAQs)

  • The LM56BIM/NOPB can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The LM56BIM/NOPB has a voltage reference output with an initial accuracy of ±1% and a temperature coefficient of ±10 ppm/°C, making it suitable for precision applications.
  • Yes, the LM56BIM/NOPB is designed to withstand high-vibration environments and is suitable for use in industrial and automotive applications.
  • Yes, the LM56BIM/NOPB is a radiation-hardened device, making it suitable for use in space and other high-radiation environments.
  • The typical current consumption of the LM56BIM/NOPB is 1.5 mA, making it suitable for battery-powered and low-power applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM56BIM/NOPB Overview

Use the download button to access the LM56BIM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM56B, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
