TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT
Supply Voltage-Max:
10 V
Supply Voltage-Min:
2.7 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Termination Type:
SOLDER
LM56BIMMX/NOPB Frequently Asked Questions (FAQs)
Texas Instruments recommends a PCB layout with a solid copper plane underneath the IC to dissipate heat efficiently. Additionally, it's recommended to use thermal vias to connect the copper plane to the IC's thermal pad.
To ensure accurate temperature measurement, it's essential to follow proper PCB layout and thermal design guidelines. Additionally, calibrate the device using a precision temperature source, and consider using a thermocouple or other temperature reference to compensate for any offset or gain errors.
Although the datasheet specifies a recommended operating voltage range of 2.7V to 5.5V, the absolute maximum rating for the VCC pin is 6.5V. However, it's recommended to operate the device within the specified range to ensure reliable operation and prevent damage.
The LM56BIMMX/NOPB is rated for operation up to 150°C, but it's essential to consider the device's thermal limitations and ensure proper heat sinking to prevent overheating. Additionally, the device's accuracy and reliability may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for guidance.
To minimize EMI, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding shielding or filtering components as needed. Additionally, consider using a ferrite bead or other EMI filter on the VCC line to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM56BIMMX/NOPB Overview

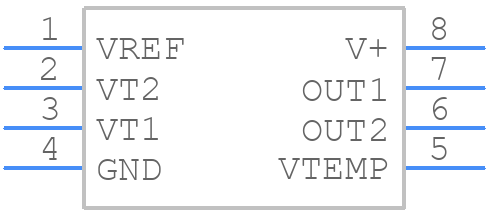

Use the download button to access the LM56BIMMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM56B,
or try a keyword search, such as Temperature Sensors
