LM56CIM/NOPB - Texas Instruments

Description: Dual Output Resistor-Programmable Temperature Switch

Download ECAD Model
Schematic
symbols

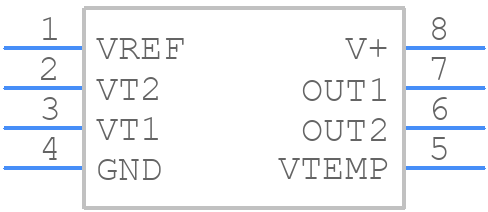

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LM56CIM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom

3D Models

LM56CIM/NOPB - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

LM56CIM/NOPB Details

  • Manufacturer Part Number:

    LM56CIM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP8,.25

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.89

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    4 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.23 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Power Supplies:

    2.7 V

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Subcategory:

    Other Sensors/Transducers

  • Supply Voltage-Max:

    10 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER
