LM56CIMM/NOPB - Texas Instruments

Description: Texas Instruments LM56CIMM/NOPB Temperature Sensor 8-Pin VSSOP, -40 → +125 °C

Download LM56CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

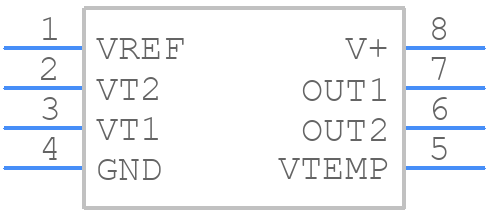

LM56CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM56CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
LM56CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK
click to zoom

LM56CIMM/NOPB Details

  • Manufacturer Part Number:

    LM56CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.23 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,DUAL TRIP POINT

  • Supply Voltage-Max:

    10 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM56CIMM/NOPB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LM56CIMM/NOPB is -40°C to 150°C.
  • To ensure accuracy, it's essential to decouple the input voltage with a capacitor, use a low-ESR capacitor for the output capacitor, and minimize noise on the input and output pins.
  • The recommended input capacitor value is 1 μF to 10 μF, depending on the input voltage and noise conditions.
  • No, the LM56CIMM/NOPB is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage reference, not to regulate voltage.
  • To minimize noise, use a low-ESR output capacitor, keep the output pin away from noisy signals, and use a ground plane to reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM56CIMM/NOPB Overview

Use the download button to access the LM56CIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM56C, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
