LM57CISDX-5/NOPB - Texas Instruments

Description: Board Mount Temperature Sensors +/-0.7degC Temperature Sensor with Resistor-Programmable Temperature Switch 8-WSON -50 to 150

Download LM57CISDX-5/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

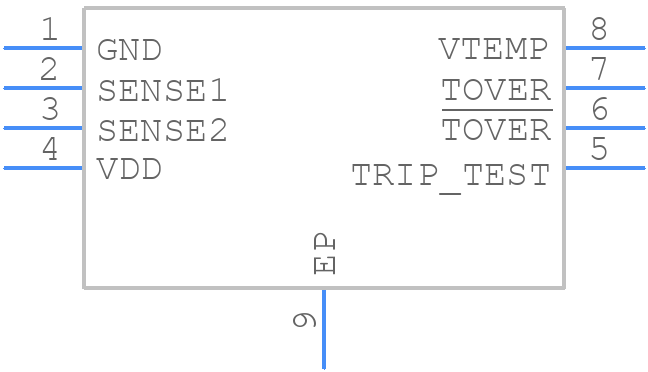

LM57CISDX-5/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM57CISDX-5/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGR0008B
click to zoom
3D Models
LM57CISDX-5/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGR0008B
click to zoom

LM57CISDX-5/NOPB Details

  • Manufacturer Part Number:

    LM57CISDX-5/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1.3 Cel

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.028 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM57CISDX-5/NOPB Frequently Asked Questions (FAQs)

  • The thermal resistance of the LM57CISDX-5/NOPB is typically around 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case). However, this value can vary depending on the specific application and PCB design.
  • Yes, the LM57CISDX-5/NOPB is designed to withstand high-vibration environments. It has a ruggedized package and is qualified to meet the requirements of various automotive and industrial standards.
  • To ensure accurate temperature measurements, it's essential to follow proper PCB design and layout guidelines, use a low-noise power supply, and minimize thermal gradients on the PCB. Additionally, calibrate the device using a precision temperature source and follow the recommended layout and routing guidelines in the datasheet.
  • Yes, the LM57CISDX-5/NOPB is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly.
  • The LM57CISDX-5/NOPB has a digital output that can be easily interfaced with a microcontroller using a standard I2C or SPI interface. The device also has a built-in ADC that can be used to convert the temperature data to a digital format. Consult the datasheet for specific interface and programming guidelines.
