LM57TQPWRQ1 - Texas Instruments

Description: Board Mount Temperature Sensors A 595-LM57TQPWQ1

Download LM57TQPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

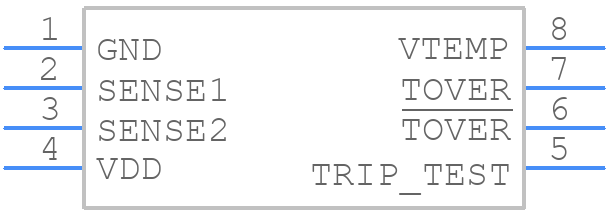

LM57TQPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM57TQPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
LM57TQPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

LM57TQPWRQ1 Details

  • Manufacturer Part Number:

    LM57TQPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1.3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.028 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

LM57TQPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the thermal pad.
  • To ensure accurate temperature measurement, it is essential to provide a good thermal connection between the device and the target temperature source. This can be achieved by using a thermal interface material, such as thermal tape or thermal grease, and ensuring that the device is properly soldered to the PCB.
  • The maximum allowed voltage on the VDD pin is 5.5V. Exceeding this voltage can cause permanent damage to the device.
  • Yes, the LM57 is designed to operate in high-vibration environments. However, it is essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels.
  • The temperature accuracy of the LM57 can be calculated by considering the device's specified accuracy, the temperature range, and the gain error. The datasheet provides a formula to calculate the temperature accuracy, which is typically ±1°C to ±3°C over the operating temperature range.
