LM57TSPWQ1 - Texas Instruments

Description: Automotive Grade, ±0.7°C Temperature Sensor with Resistor-Programmable Temp Switch

Download LM57TSPWQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

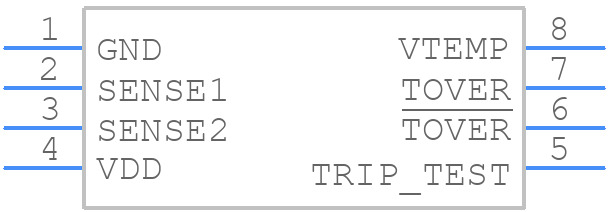

LM57TSPWQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM57TSPWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G8)
click to zoom
3D Models
LM57TSPWQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G8)
click to zoom

LM57TSPWQ1 Details

  • Manufacturer Part Number:

    LM57TSPWQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1.3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.028 mA

  • Operating Temperature-Max:

    160 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

LM57TSPWQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure accurate temperature measurement, it's essential to follow proper PCB layout and thermal design guidelines. Additionally, calibrate the device using the CAL pin, and consider using a thermocouple or thermistor for temperature sensing.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the LM57 is designed to operate in high-vibration environments. However, it's essential to ensure proper PCB mounting and secure the device to prevent mechanical stress.
  • Texas Instruments recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM57TSPWQ1 Overview

Use the download button to access the LM57TSPWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM57T, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
