A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using thermal vias and a solid ground plane can help to dissipate heat more efficiently.
To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings, and provide a stable input voltage. Also, ensure that the output voltage is within the recommended range, and that the device is operated within the recommended temperature range.
The critical components that affect the device's noise performance include the input and output capacitors, the inductor, and the PCB layout. The quality and type of these components, as well as their placement on the PCB, can significantly impact the device's noise performance.
To troubleshoot issues with the device's output voltage regulation, start by checking the input voltage and current, and ensuring that they are within the recommended range. Next, check the output voltage and current, and verify that they are within the expected range. If the issue persists, check the feedback loop and ensure that it is properly configured and functioning correctly.
To ensure EMI and EMC compliance, consider the following key factors: use a shielded enclosure, minimize loop areas and wire lengths, use a common mode choke, and ensure that the device is properly grounded. Additionally, follow good PCB layout practices, such as separating analog and digital circuits, and using a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM61495Q3RPHRQ1 Overview

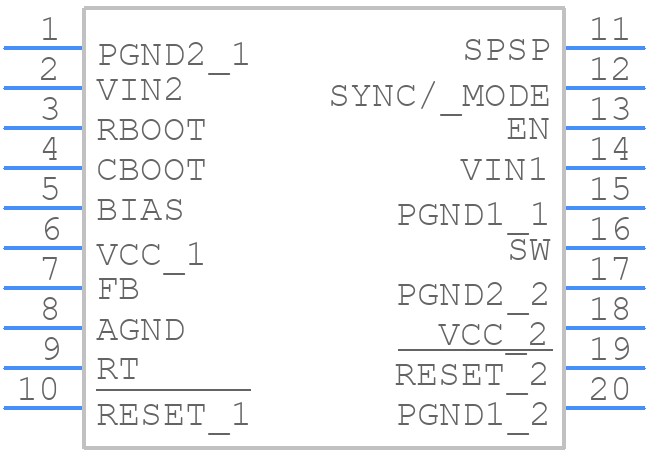

Use the download button to access the LM61495Q3RPHRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM614,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
