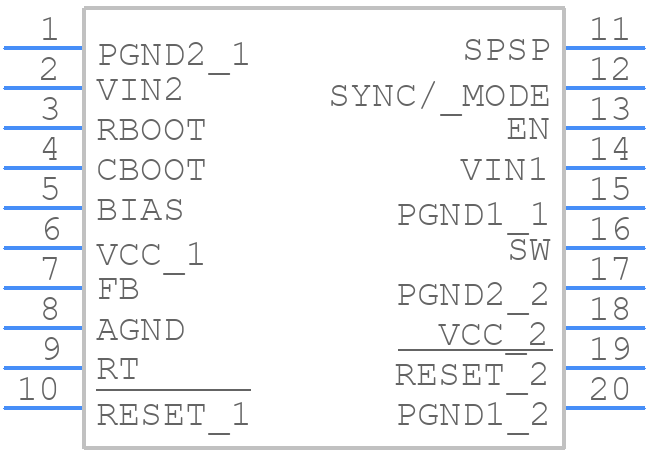

LM61495QRPHRQ1 - Texas Instruments

LM61495QRPHRQ1 Details

• Manufacturer Part Number:

  LM61495QRPHRQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  13.5 V

• JESD-30 Code:

  R-PQCC-N16

• JESD-609 Code:

  e3

• Length:

  4.5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  34.2 V

• Output Voltage-Min:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC16(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2200 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.5 mm
