A good PCB layout for the LM6172AMGW-QML involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the device is operated within its specified voltage and current ranges. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the PCB trace inductance.
The maximum power dissipation of the LM6172AMGW-QML is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, the LM6172AMGW-QML is a radiation-hardened device that is designed for high-reliability applications. It's qualified to the NASA Level 1 and QML Class Q requirements, making it suitable for use in space and other high-reliability applications.
The LM6172AMGW-QML is designed to be radiation-hardened, but it's still important to consider the effects of radiation on the device. It's recommended to follow the guidelines for radiation effects mitigation, such as using radiation-hardened components, shielding, and error correction mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM6172AMGW-QML Overview

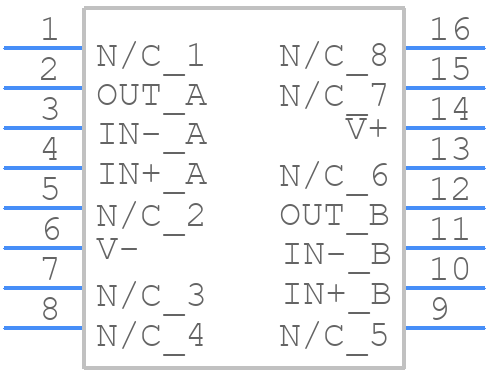

Use the download button to access the LM6172AMGW-QML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM617,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
