A good PCB layout for the LM6172AMGWFQMLV involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the device is operated within its recommended operating conditions. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help prevent oscillations.
The maximum power dissipation of the LM6172AMGWFQMLV is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
The LM6172AMGWFQMLV is rated for operation up to 125°C, but it's essential to ensure that the device is operated within its recommended operating conditions and that the junction temperature is kept below the maximum rating. Additionally, the device's performance may degrade at high temperatures, so it's essential to characterize the device's performance at the expected operating temperature.
To protect the LM6172AMGWFQMLV from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor to detect and respond to voltage faults. Additionally, using a voltage regulator with overvoltage protection and undervoltage lockout can help protect the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM6172AMGWFQMLV Overview

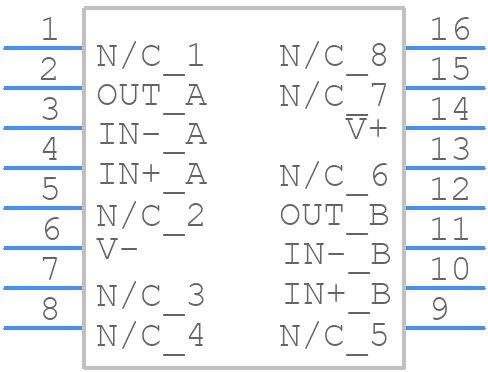

Use the download button to access the LM6172AMGWFQMLV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM617,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
