Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing parasitic inductance and capacitance.
The choice of input and output capacitors depends on the specific application and operating frequency. In general, X7R or X5R ceramic capacitors with low ESR (Equivalent Series Resistance) are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consider factors such as voltage rating, temperature coefficient, and physical size.
The maximum power dissipation of the LM6172AMGWRLQV is dependent on the operating conditions, such as supply voltage, output current, and ambient temperature. The datasheet provides a power dissipation calculation formula, and it's essential to ensure that the device is properly heat-sinked and that the PCB design allows for adequate airflow to prevent overheating.
While the LM6172AMGWRLQV is primarily designed as a linear amplifier, it can be used in switching regulator applications with some caveats. The device's high bandwidth and slew rate make it suitable for high-frequency switching applications, but it's essential to ensure that the device is properly biased and that the output stage is designed to handle the high-frequency switching currents.
Troubleshooting issues with the LM6172AMGWRLQV often requires a systematic approach, starting with verifying the power supply and input/output connections. Common issues such as oscillation or instability can be caused by improper PCB layout, inadequate decoupling, or incorrect component selection. Texas Instruments provides some troubleshooting guidelines in the datasheet, and it's also recommended to consult application notes and online forums for additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM6172AMGWRLQV Overview

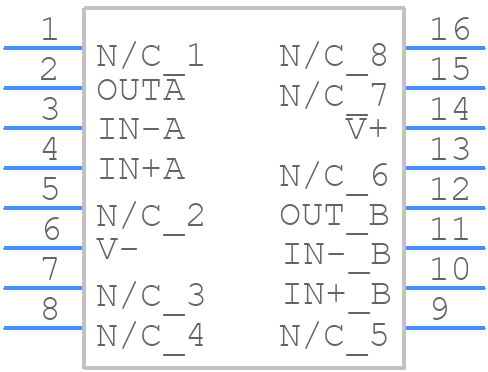

Use the download button to access the LM6172AMGWRLQV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM617,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
