Texas Instruments provides a recommended PCB layout in the LM63610 datasheet, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage, output voltage, and desired ripple and noise performance. Texas Instruments provides guidelines for capacitor selection in the LM63610 datasheet, and online tools such as the TI Capacitor Selection Tool can also be used to aid in the selection process.
The LM63610DQDRRRQ1 is rated for operation over a temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. Engineers should consult the datasheet and perform thermal analysis to determine the maximum ambient temperature range for their specific application.
The LM63610 has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OC pin to GND. The value of the resistor determines the overcurrent threshold, and engineers can consult the datasheet for more information on how to implement overcurrent protection in their application.
The recommended startup sequence for the LM63610 involves applying the input voltage, followed by the enable signal. This ensures that the device is properly biased and configured before the output voltage is enabled. Engineers should consult the datasheet for more information on the recommended startup sequence.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM63610DQDRRRQ1 Overview

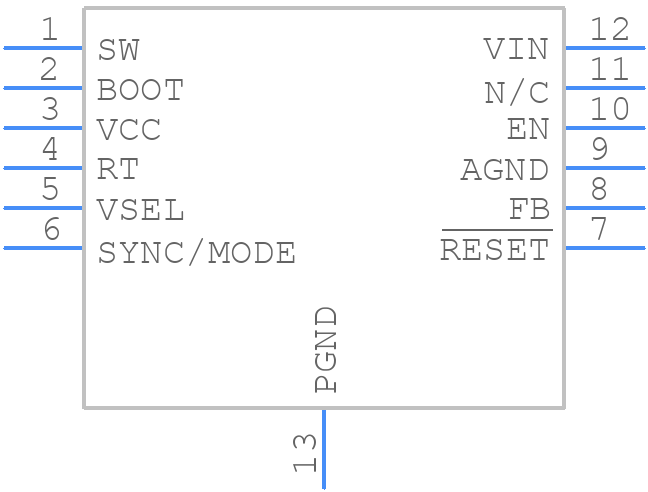

Use the download button to access the LM63610DQDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM636,
or try a keyword search, such as Switching Regulator or Controllers
