SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM63610DQPWPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thick copper traces for heat dissipation, and keeping the device away from other heat sources.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider the device's thermal shutdown feature.
When selecting output capacitors, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a capacitance value between 10uF to 22uF are recommended for optimal performance.
To optimize the device's performance, consider the application's specific requirements, such as output voltage, current, and power dissipation. Adjust the device's configuration, including the output capacitor, inductor, and feedback resistors, to achieve the desired performance.
Potential sources of noise include switching frequency, output voltage ripple, and input voltage noise. These can be mitigated by using a low-noise input voltage, adding noise filters, and optimizing the device's configuration for minimal noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM63610DQPWPRQ1 Overview

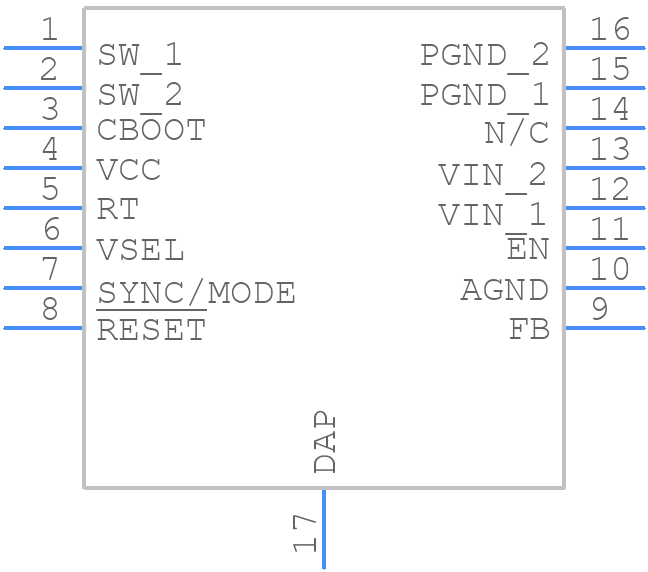

Use the download button to access the LM63610DQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM636,
or try a keyword search, such as Switching Regulator or Controllers
