ALSO HAS CONTROL TECHNIQUE OF PFM; ALSO HAS 5V O/P VOL-NOM
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.5 A
Output Voltage-Max:
24 V
Output Voltage-Min:
1 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.023 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM63615DQPWPRQ1 Frequently Asked Questions (FAQs)
The maximum input voltage is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, ensure that the output capacitor is of sufficient value and type, and that the input capacitor is properly sized to filter out noise.
The maximum output current is 1.5A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
To handle thermal considerations, ensure that the device is mounted on a suitable heat sink, and that the thermal resistance (θJA) is within the recommended range. Also, ensure that the device is operated within the recommended temperature range (-40°C to 125°C).
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM63615DQPWPRQ1 Overview

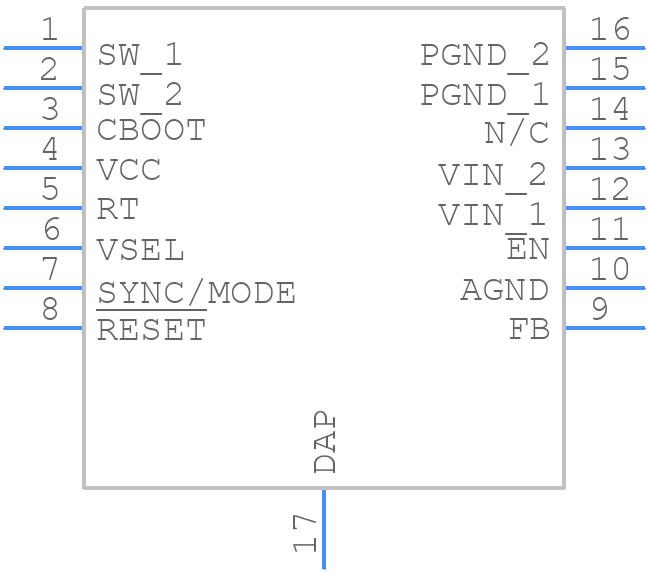

Use the download button to access the LM63615DQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM636,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
