ALSO HAS CONTROL TECHNIQUE OF PFM; ALSO HAS 5V O/P VOL-NOM
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.5 A
Output Voltage-Max:
20 V
Output Voltage-Min:
1 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.023 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM63625DQPWPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note (SLUA623) provides additional recommendations.
The choice of input and output capacitors depends on the specific requirements of your application, such as the input voltage range, output voltage, and desired ripple and noise performance. TI provides a capacitor selection guide (SLUA623) that can help with this process.
Operating the device at high ambient temperatures can affect its performance and reliability. The datasheet provides thermal derating information, but it's essential to consider the specific thermal requirements of your application and ensure that the device is properly cooled.
To ensure EMC in your design, follow proper PCB layout and grounding techniques, use shielding and filtering as needed, and consider the device's electromagnetic emissions and susceptibility. TI provides an application note (SLAA554) on EMC design considerations for switch-mode power supplies.
The trade-offs between efficiency, output voltage ripple, and component selection depend on the specific requirements of your application. In general, increasing the switching frequency can improve efficiency but may increase output voltage ripple, while using larger inductors and capacitors can reduce ripple but may decrease efficiency.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM63625DQPWPRQ1 Overview

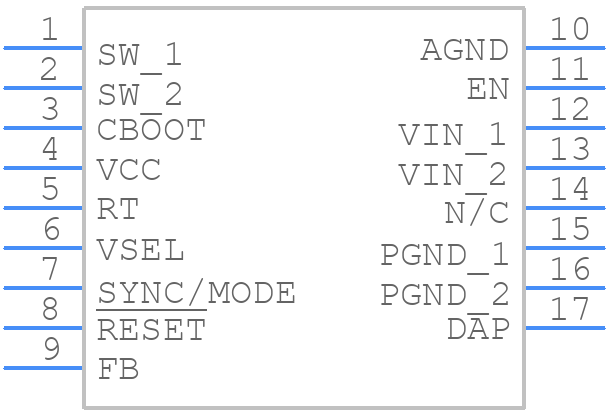

Use the download button to access the LM63625DQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
