- Part Number LM710CN
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N14A-ren1
- Released Date Nov 2, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM710CN Details
-
Manufacturer Part Number:
LM710CN
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP, DIP14,.3
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
COMPARATOR
-
Average Bias Current-Max (IIB):
9 µA
LM710CN Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LM710CN is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance from junction to ambient (120°C/W).
-
While the LM710CN can be used as a comparator, it's not the best choice due to its limited slew rate (0.5V/μs) and bandwidth (1MHz). A dedicated comparator like the LM339 or LM2901 would be a better option.
-
To ensure stability, make sure to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor to reduce the gain at high frequencies. Additionally, ensure that the feedback loop has a sufficient phase margin (>45°) to prevent oscillations.
-
The input impedance of the LM710CN is typically around 2MΩ, which is relatively high. However, this can vary depending on the specific application and operating conditions.
-
Yes, the LM710CN can be used in a single-supply configuration, but it's essential to ensure that the input common-mode voltage range is within the specified limits (VCC-1.5V to VCC+0.5V). Additionally, the output voltage swing may be limited in single-supply operation.
Trust Checks
Community Provided
System Verified
Community Approved
LM710CN Overview

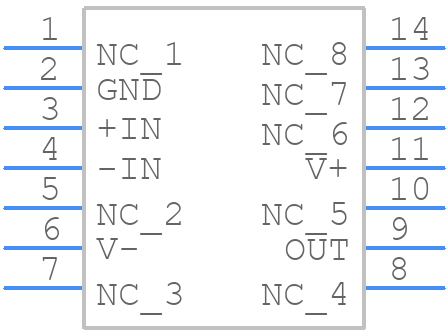

Use the download button to access the LM710CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM710,
or try a keyword search, such as Comparators
