LM7171AMWGFLQV - Texas Instruments

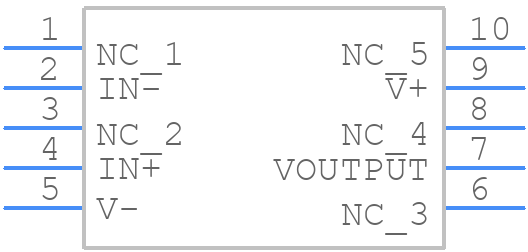

LM7171AMWGFLQV Details

• Manufacturer Part Number:

  LM7171AMWGFLQV

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  CERAMIC, SOIC-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  12 µA

• Bias Current-Max (IIB) @25C:

  10 µA

• Common-mode Reject Ratio-Min:

  85 dB

• Frequency Compensation:

  YES (AVCL>=2)

• Input Offset Voltage-Max:

  7000 µV

• JESD-30 Code:

  R-CDSO-G10

• JESD-609 Code:

  e0

• Length:

  6.86 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  SOP

• Package Equivalence Code:

  SOP10,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Screening Level:

  38535V;38534K;883S

• Seated Height-Max:

  2.33 mm

• Slew Rate-Min:

  2000 V/us

• Slew Rate-Nom:

  2400 V/us

• Supply Current-Max:

  9.5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Total Dose:

  300k Rad(Si) V

• Unity Gain BW-Nom:

  170000

• Voltage Gain-Min:

  5623.41

• Wideband:

  YES

• Width:

  6.12 mm
