Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing parasitic inductance and capacitance.
The choice of input and output capacitors depends on the specific application and operating conditions. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consider factors such as voltage rating, temperature range, and physical size.
The LM7171 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may be limited by the specific application and the thermal design of the system. It's important to ensure that the device is properly heat-sinked and that the thermal design is adequate to prevent overheating.
The LM7171 has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features, but it's still important to add external protection devices such as TVS diodes and fuses to protect against extreme overvoltage and overcurrent conditions. The datasheet provides guidance on how to implement these protection devices.
The typical startup time for the LM7171 is around 100-200 μs, but this can vary depending on the specific application and operating conditions. The datasheet provides more information on startup time and how it can be affected by factors such as input voltage and output load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM7171AMWGFQMLV Overview

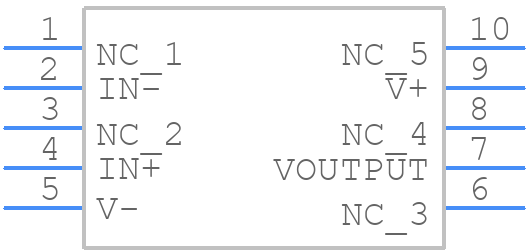

Use the download button to access the LM7171AMWGFQMLV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM717,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
