LM723CH/NOPB - Texas Instruments

LM723CH/NOPB Details

• Manufacturer Part Number:

  LM723CH/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

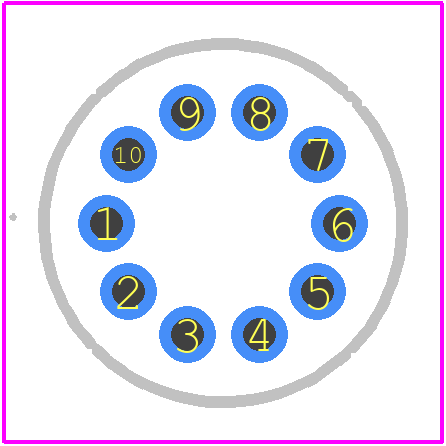

• Part Package Code:

  TO-5

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Nom:

  3 V

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  9.5 V

• Input-Output Voltage Differential-Max:

  38 V

• Input-Output Voltage Differential-Min:

  3 V

• JESD-30 Code:

  O-MBCY-W10

• Line Regulation-Max (%/V):

  0.017

• Load Regulation-Max(%):

  0.6%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  70 °C

• Operating Temperature-Max:

  70 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  37 V

• Output Voltage1-Min:

  2 V

• Package Body Material:

  METAL

• Package Code:

  TO-5

• Package Equivalence Code:

  CAN10,.23

• Package Shape:

  ROUND

• Package Style:

  CYLINDRICAL

• Packing Method:

  BULK

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  5.72 mm

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Form:

  WIRE

• Terminal Position:

  BOTTOM
