LM73605RNPR - Texas Instruments

Description: Switching Voltage Regulators 3.5V to 36V 5A Synch Step-Down VConverter

Download LM73605RNPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

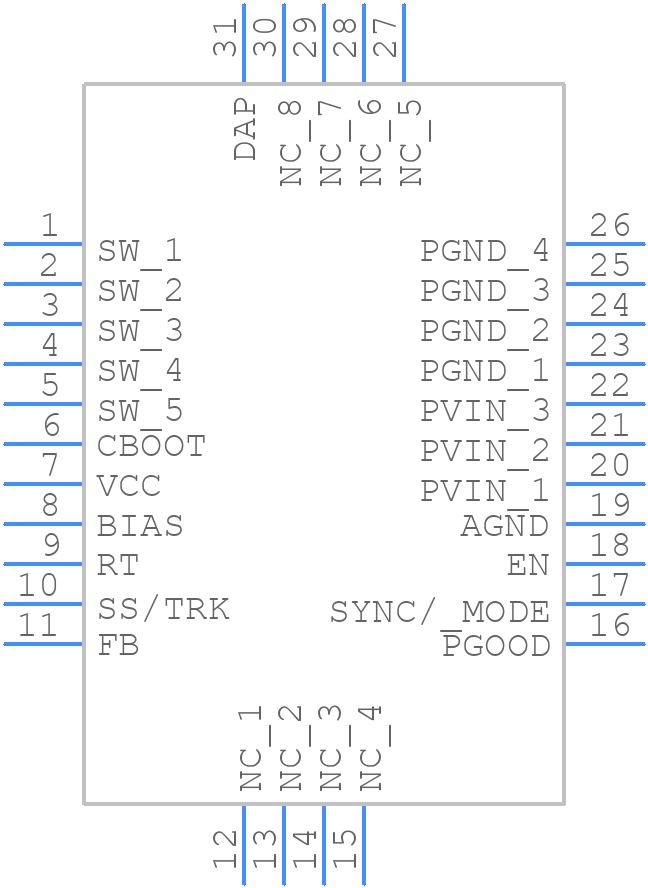

LM73605RNPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM73605RNPR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNP0030A
click to zoom
3D Models
LM73605RNPR - Texas Instruments - 3D model - Quad Flat No-Lead - RNP0030A
click to zoom

LM73605RNPR Details

  • Manufacturer Part Number:

    LM73605RNPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO VOUT=5 VOLT;PFM TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N30

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    34 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM73605RNPR Frequently Asked Questions (FAQs)

  • The LM73605RNPR can handle a maximum input voltage of 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended limits.
  • The LM73605RNPR can deliver a maximum output current of 5A, but it's recommended to operate within the specified output current range of 0.5A to 3A for optimal performance and reliability.
  • The output voltage of the LM73605RNPR can be adjusted by using an external resistor divider network connected to the FB (feedback) pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high (above 1.4V), the regulator is enabled, and when it's pulled low (below 0.4V), the regulator is disabled. This pin can be used to implement power sequencing or to shut down the regulator when not in use.
