LM74CIMX-3 - Texas Instruments

Description: Temp Sensor Digital Serial (3-Wire, SPI) 8-Pin SOIC T/R

Download LM74CIMX-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

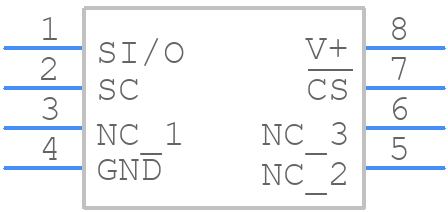

LM74CIMX-3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM74CIMX-3 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - (D0008A_H=1.75)
click to zoom
3D Models
LM74CIMX-3 - Texas Instruments - 3D model - Small Outline Packages - (D0008A_H=1.75)
click to zoom

LM74CIMX-3 Details

  • Manufacturer Part Number:

    LM74CIMX-3

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Accuracy-Max (Cel):

    1.25 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.47 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Voltage-Max:

    2.4 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Termination Type:

    SOLDER
