- Part Number LM75AIM
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P620X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM75AIM Details
-
Manufacturer Part Number:
LM75AIM
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
0.150 INCH, PLASTIC, SOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Accuracy-Max (Cel):
3 Cel
-
Body Breadth:
3.9 mm
LM75AIM Frequently Asked Questions (FAQs)
-
The maximum cable length for the LM75A's digital interface is not explicitly stated in the datasheet, but it is generally recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable communication.
-
The LM75A is designed to operate from a 2.7V to 5.5V power supply, but it is not recommended to use it with a 5V power supply as it may exceed the maximum rating of the device. It's recommended to use a 3.3V or lower power supply to ensure reliable operation.
-
The LM75A has a built-in thermal shutdown feature that shuts down the device when the junction temperature exceeds 150°C. To handle this feature, you should ensure that the device is properly heatsinked and that the thermal shutdown pin is properly connected to a pull-up resistor and a capacitor to filter out noise.
-
The LM75A is a digital device and can be susceptible to noise in the digital interface. To minimize the effects of noise, it's recommended to use a shielded cable, keep the cable length short, and use a common-mode filter or a ferrite bead to filter out high-frequency noise.
-
The LM75A's temperature sensor is calibrated at the factory, but you may need to perform a one-point calibration to adjust for any offset errors. You can do this by measuring the temperature sensor output at a known temperature point and adjusting the offset register accordingly.
Trust Checks
System Verified
LM75AIM Overview

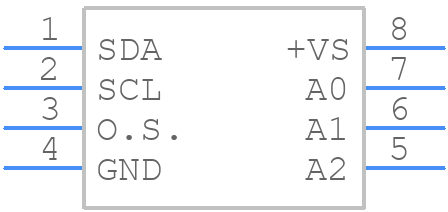

Use the download button to access the LM75AIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM75A,
or try a keyword search, such as Temperature Sensors
