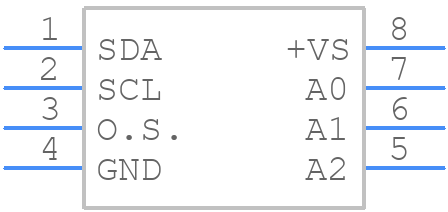

LM75BIMM-5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM75BIMM-5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM75BIMM-5 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM75BIMM-5 Details

  • Manufacturer Part Number:

    LM75BIMM-5

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.965 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.28 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN LEAD

  • Termination Type:

    SOLDER

LM75BIMM-5 Frequently Asked Questions (FAQs)

  • The LM75BIMM-5 can operate from -55°C to 150°C, but the accuracy of the temperature measurement is only guaranteed from -25°C to 100°C.
  • The thermal resistance of the package (θJA) is approximately 45°C/W. To minimize errors, ensure good thermal contact between the device and the PCB, and consider using thermal vias or a heat sink if necessary.
  • A simple POR circuit can be implemented using a 1 kΩ resistor and a 10 μF capacitor connected to the VCC pin. This ensures that the device resets properly during power-up.
  • To minimize noise sensitivity, use a low-pass filter or a Schmitt trigger on the digital output lines, and ensure that the PCB layout is designed to minimize electromagnetic interference (EMI).
  • Yes, the LM75BIMM-5 supports multi-drop bus configuration, but ensure that the total bus capacitance does not exceed 400 pF to maintain signal integrity.
