LM75BIMX-3 - Texas Instruments

Description: Board Mount Temperature Sensors A 926-LM75BIMX-3/NOPB

Download LM75BIMX-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

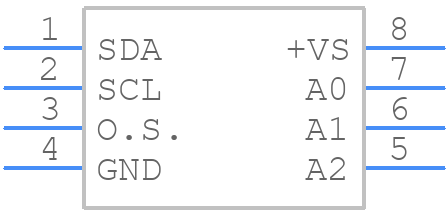

LM75BIMX-3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM75BIMX-3 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
LM75BIMX-3 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

LM75BIMX-3 Details

  • Manufacturer Part Number:

    LM75BIMX-3

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Termination Type:

    SOLDER

LM75BIMX-3 Frequently Asked Questions (FAQs)

  • The LM75BIMX-3 can operate from -40°C to 125°C, but the accuracy of the temperature measurement is guaranteed from -20°C to 100°C.
  • The LM75BIMX-3 can be configured for 2-wire or 3-wire serial interface by connecting the SDA pin to VCC for 2-wire mode or to GND for 3-wire mode.
  • The typical current consumption of the LM75BIMX-3 is 200 μA, but it can be as low as 10 μA in shutdown mode.
  • The LM75BIMX-3 has a built-in thermal shutdown feature that can be enabled by setting the TOS bit in the configuration register. The device will shut down when the temperature exceeds the programmed threshold.
  • Yes, the LM75BIMX-3 can be used for remote temperature sensing by connecting the device to a remote temperature sensor, such as a thermistor or thermocouple, and using the LM75BIMX-3 to digitize the temperature reading.
