The maximum cable length for the I2C bus is dependent on the capacitance of the bus and the clock frequency. As a general rule, the maximum cable length is around 10-20 meters at 100 kHz clock frequency. However, it's recommended to keep the cable length as short as possible to minimize signal degradation.
During power-up, the LM75BIMX-5 may enter thermal shutdown if the internal temperature is above the thermal shutdown threshold. To handle this, ensure that the power supply is stable and the device is not subjected to high temperatures during power-up. You can also add a power-up reset circuit to ensure the device is properly reset before starting operation.
To minimize thermal resistance, it's recommended to use a thermal pad on the bottom of the device and connect it to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, ensure that the device is placed away from heat sources and that there is adequate airflow around the device.
The LM75BIMX-5 does not require calibration. The device is calibrated during manufacturing and the temperature sensor is accurate to ±2°C over the operating temperature range. However, if you need to improve the accuracy, you can use the offset register to adjust the temperature reading.
The maximum number of devices that can be connected on the I2C bus depends on the bus capacitance and the clock frequency. As a general rule, up to 10 devices can be connected on the same bus. However, it's recommended to keep the number of devices to a minimum to minimize bus capacitance and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM75BIMX-5 Overview

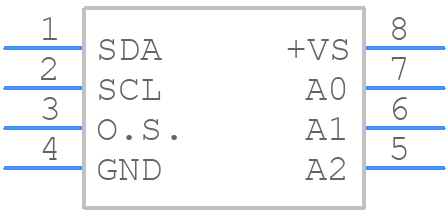

Use the download button to access the LM75BIMX-5 schematic symbol, PCB footprint, and 3D model.
