LM75CIMM-3/NOPB - Texas Instruments

Description: Board Mount Temperature Sensors

Download LM75CIMM-3/NOPB Model

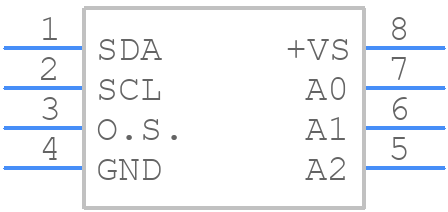

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM75CIMM-3/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - M0-187
click to zoom
3D Models
LM75CIMM-3/NOPB - Texas Instruments  - 3D model - Small Outline Packages - M0-187
click to zoom

LM75CIMM-3/NOPB Details

  • Manufacturer Part Number:

    LM75CIMM-3/NOPB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    RECTANGULAR

  • Surface Mount:

    YES

LM75CIMM-3/NOPB Frequently Asked Questions (FAQs)

  • The LM75CIMM-3/NOPB is typically used in thermal management applications, such as monitoring temperature in computers, servers, and other electronic devices.
  • The LM75CIMM-3/NOPB has an accuracy of ±2°C from -25°C to 100°C, and ±3°C from -55°C to 125°C.
  • The LM75CIMM-3/NOPB has a resolution of 0.125°C.
  • The LM75CIMM-3/NOPB communicates with the microcontroller through an I²C (Inter-Integrated Circuit) interface.
  • The LM75CIMM-3/NOPB has a typical current consumption of 1.5mA, and a maximum current consumption of 2.5mA.
