LM75CIMM-3 - Texas Instruments

Description: Board Mount Temperature Sensors

Download LM75CIMM-3 Model

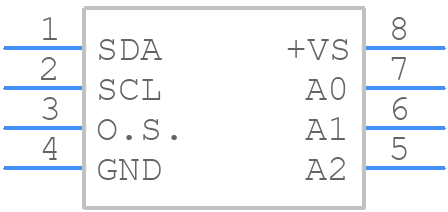

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM75CIMM-3 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - MUA08A - 8-Lead MSOP Package NS Package Number
click to zoom
3D Models
LM75CIMM-3 - Texas Instruments  - 3D model - Small Outline Packages - MUA08A - 8-Lead MSOP Package NS Package Number
click to zoom

LM75CIMM-3 Details

  • Manufacturer Part Number:

    LM75CIMM-3

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-187, MSOP-8

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.965 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.28 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

LM75CIMM-3 Frequently Asked Questions (FAQs)

  • The LM75CIMM-3 can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 100°C.
  • The LM75CIMM-3 defaults to 9-bit resolution. To configure it for 10-bit resolution, set the RES pin high during power-up. For 9-bit resolution, set the RES pin low or leave it floating.
  • The typical current consumption of the LM75CIMM-3 is 200 μA, but it can be as low as 10 μA in shutdown mode.
  • To put the LM75CIMM-3 into shutdown mode, set the SHDN pin low. This reduces the current consumption to a minimum.
  • The OS pin is an open-drain output that goes low when the temperature exceeds the threshold set by the TOS pin. It can be used to trigger an interrupt or alarm.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM75CIMM-3 Overview

Use the download button to access the LM75CIMM-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM75C, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LM75CIMM-3

Showing 0 results

LM75CIMM-3 Alternates

Showing results

Image Part Number Model
Part Image LM75BIMMX-3+ Analog Devices Inc

Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, CMOS, Square, 8 Pin, Surface Mount

Part Image LM75CIMM-3 National Semiconductor Corporation

Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, Square, 8 Pin, Surface Mount

Part Image LM75BIMM-3+T Maxim Integrated Products

Temperature Sensor, CMOS, Rectangular, 8 Pin, Surface Mount

Part Image LM75CIMMX-3 National Semiconductor Corporation

Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, Square, 8 Pin, Surface Mount

Part Image LM75CIMM-3/NOPB National Semiconductor Corporation

Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, Square, 8 Pin, Surface Mount

For a full list of alternate parts for LM75CIMM-3, check out Findchips.com
