ALSO REQUIRE PWM CONTROL TECHNIQUE; ALSO OPERATES IN ADJUSTABLE MODE FROM 1 TO 57V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE FREQUENCY MODULATION
Input Voltage-Max:
60 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PQCC-N30
JESD-609 Code:
e4
Length:
6 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
30
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.5 A
Output Voltage-Max:
57 V
Output Voltage-Min:
1 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
LM76002RNPR Frequently Asked Questions (FAQs)
The LM76002RNPR can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the feedback resistor.
The LM76002RNPR can deliver up to 2A of output current, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and adjust the output current accordingly.
The LM76002RNPR has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. The OCP threshold is typically set to 2.5A, and the TSD threshold is typically set to 150°C. However, it's still essential to follow proper thermal design and layout guidelines to ensure the device operates within its recommended specifications.
The LM76002RNPR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating temperature range and consider the device's thermal performance when designing for high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM76002RNPR Overview

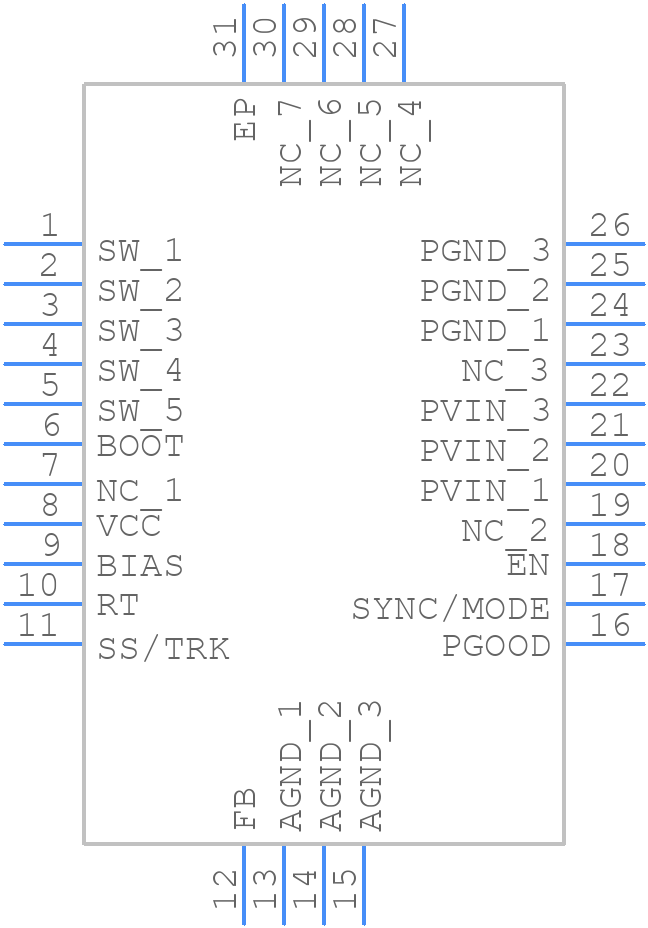

Use the download button to access the LM76002RNPR schematic symbol, PCB footprint, and 3D model.
