LM76CHM-5/NOPB - Texas Instruments

Description: ±1°C Temperature Sensor with Alert Function and I2C/SMBUS Interface

Download LM76CHM-5/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

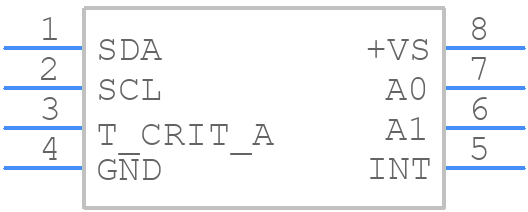

Symbol
LM76CHM-5/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM76CHM-5/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM76CHM-5/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM76CHM-5/NOPB Details

  • Manufacturer Part Number:

    LM76CHM-5/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.45 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM76CHM-5/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LM76CHM-5/NOPB is -40°C to 125°C.
  • To ensure accuracy, it's essential to follow proper PCB layout and thermal design guidelines, minimize thermal gradients, and calibrate the device according to the datasheet recommendations.
  • Yes, the LM76CHM-5/NOPB is designed to operate in high-vibration environments, but it's crucial to ensure proper mounting and mechanical stability to prevent damage or inaccurate readings.
  • The LM76CHM-5/NOPB communicates via an I2C interface. You'll need to connect the SCL and SDA pins to the microcontroller's I2C pins and use a compatible I2C library to read temperature data.
  • The typical current consumption of the LM76CHM-5/NOPB is around 1.5mA, but this can vary depending on the operating frequency and mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM76CHM-5/NOPB Overview

Use the download button to access the LM76CHM-5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM76C, or try a keyword search, such as Temperature Sensors
