LM78L09ITPX/NOPB - Texas Instruments

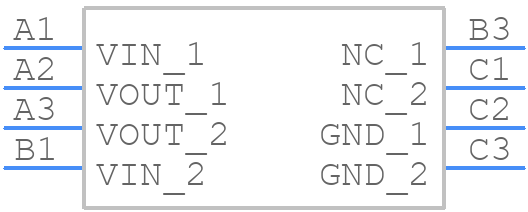

LM78L09ITPX/NOPB Details

• Manufacturer Part Number:

  LM78L09ITPX/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  BGA

• Package Description:

  DSBGA-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  4

• Adjustability:

  FIXED

• Dropout Voltage1-Nom:

  2.5 V

• Input Voltage Absolute-Max:

  35 V

• Input Voltage-Max:

  24 V

• Input Voltage-Min:

  11.5 V

• JESD-30 Code:

  S-PBGA-B8

• JESD-609 Code:

  e1

• Length:

  1.3 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.09%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  85 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.1 A

• Output Voltage1-Max:

  9.45 V

• Output Voltage1-Min:

  8.55 V

• Output Voltage1-Nom:

  9 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA8,3X3,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  0.575 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  5%

• Width:

  1.3 mm
