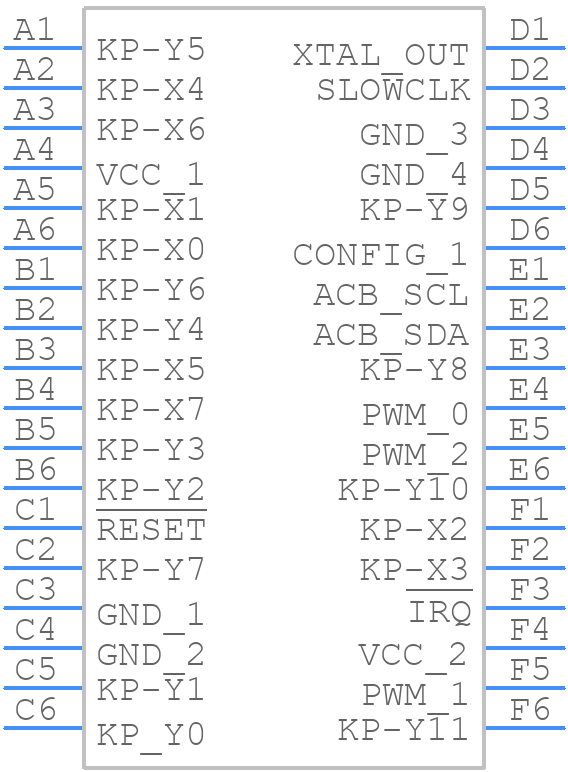

LM8323JGR8AXM/NOPB - Texas Instruments

LM8323JGR8AXM/NOPB Details

• Manufacturer Part Number:

  LM8323JGR8AXM/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Bus Compatibility:

  I2C

• JESD-30 Code:

  S-PBGA-B36

• JESD-609 Code:

  e1

• Length:

  3.5 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA36,6X6,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  1.98 V

• Supply Voltage-Min:

  1.62 V

• Supply Voltage-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR CIRCUIT
