A good PCB layout for the LM8335TLE/NOPB involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a star-grounding configuration and to avoid routing high-frequency signals near the device.
To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements. The LM8335TLE/NOPB requires a single supply voltage between 2.7V and 5.5V, and the input common-mode voltage should be set to half of the supply voltage. Additionally, ensure that the output is properly terminated and that the device is operated within its recommended operating conditions.
The LM8335TLE/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power or high-temperature applications. Use a thermal pad or heat sink to dissipate heat, and ensure good airflow around the device.
To filter out noise and interference, use a combination of passive and active filtering techniques. Use capacitors and resistors to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to remove specific frequency components. Additionally, use shielding and grounding techniques to minimize electromagnetic interference.
To ensure EMI and EMC compliance, follow good design practices such as using a solid ground plane, minimizing loop areas, and using shielding and filtering techniques. Additionally, ensure that the device is operated within its recommended specifications, and consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM8335TLE/NOPB Overview

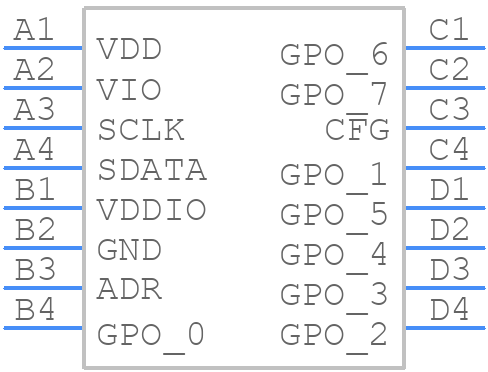

Use the download button to access the LM8335TLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM833,
or try a keyword search, such as Parallel IO Ports
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
