LM84BIMQAX/NOPB - Texas Instruments

Description: ±1°C Remote and Local Temperature Sensor with SMBus, I2C Interface

Download LM84BIMQAX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

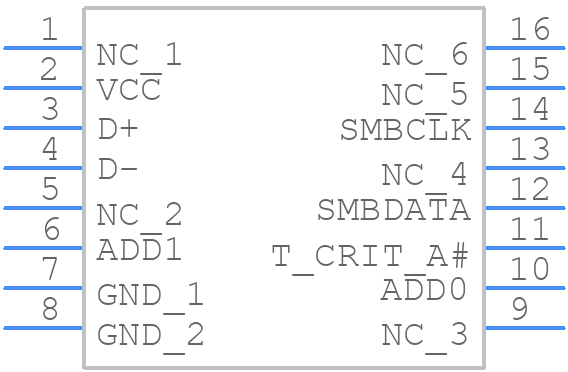

LM84BIMQAX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM84BIMQAX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead QSOP Package
click to zoom
3D Models
LM84BIMQAX/NOPB - Texas Instruments - 3D model - Small Outline Packages - 16-Lead QSOP Package
click to zoom

LM84BIMQAX/NOPB Details

  • Manufacturer Part Number:

    LM84BIMQAX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    16

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Output Current-Nom:

    100 µA

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

LM84BIMQAX/NOPB Frequently Asked Questions (FAQs)

  • The LM84BIMQAX/NOPB is typically used in computer motherboards, servers, and other electronic systems to monitor temperature and provide thermal management.
  • The LM84BIMQAX/NOPB has an accuracy of ±2°C over the operating temperature range of -20°C to 100°C, and ±3°C over the extended temperature range of -40°C to 125°C.
  • The response time of the LM84BIMQAX/NOPB is typically around 10 seconds, which is the time it takes for the sensor to reach 63.2% of the final temperature reading.
  • Yes, the LM84BIMQAX/NOPB is designed for high-reliability applications and is qualified to automotive and industrial standards, including AEC-Q100 and IEC 60730.
  • The LM84BIMQAX/NOPB is designed to handle thermal gradients and can accurately measure temperature even in the presence of thermal gradients, making it suitable for use in systems with high thermal activity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM84BIMQAX/NOPB Overview

Use the download button to access the LM84BIMQAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM84B, or try a keyword search, such as Temperature Sensors
