Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LM8502TME/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
While the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to ensure reliable operation. A general rule of thumb is to limit the input voltage to 80% of the maximum rating, which would be around 33.6V for the LM8502TME/NOPB.
Start by verifying the PCB layout and component values match the recommended design. Check for proper decoupling, filtering, and bypassing. Use an oscilloscope to measure the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
The LM8502TME/NOPB is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. Ensure that the device meets the required specifications and standards for the target application, and consult with Texas Instruments for guidance on using the device in such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM8502TME/NOPB Overview

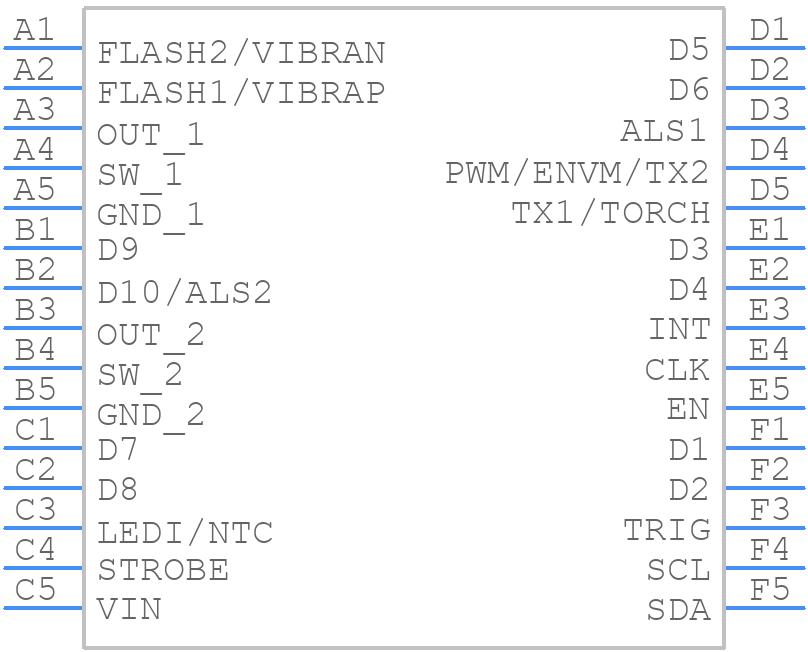

Use the download button to access the LM8502TME/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM850,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
