LM8560 - Sanyo

Description: The LM8560 is alarm equipped digital clock IC with built-in driver capable of directly driving LED display equipment. As IC himself the VDD pin for the LM8560 is graded to withstand a voltage of 15V

Download LM8560 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LM8560 model

Email notifications will be applied after download.

Send part feedback

Symbol

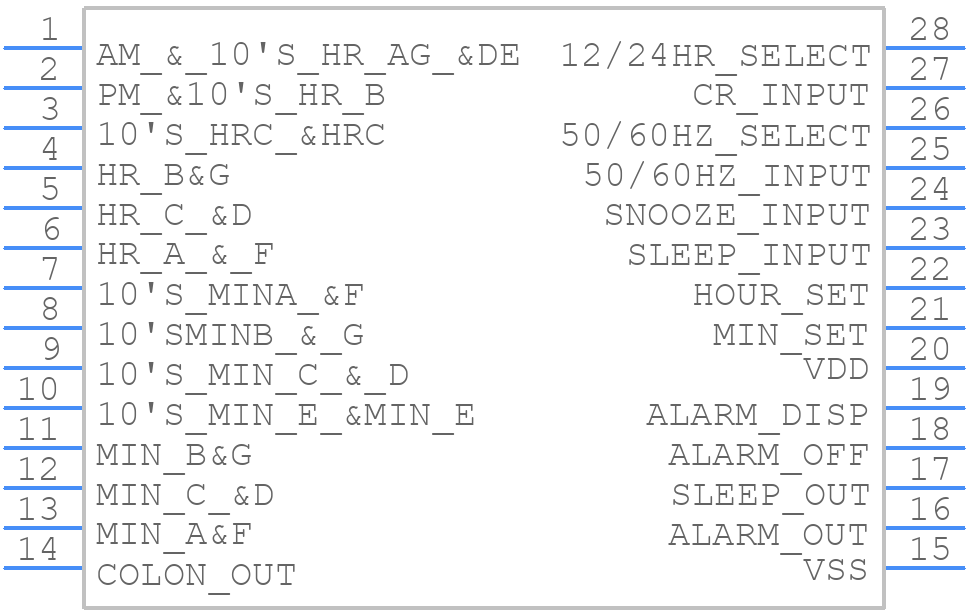

LM8560 - Sanyo - PCB symbol

PCB Footprints

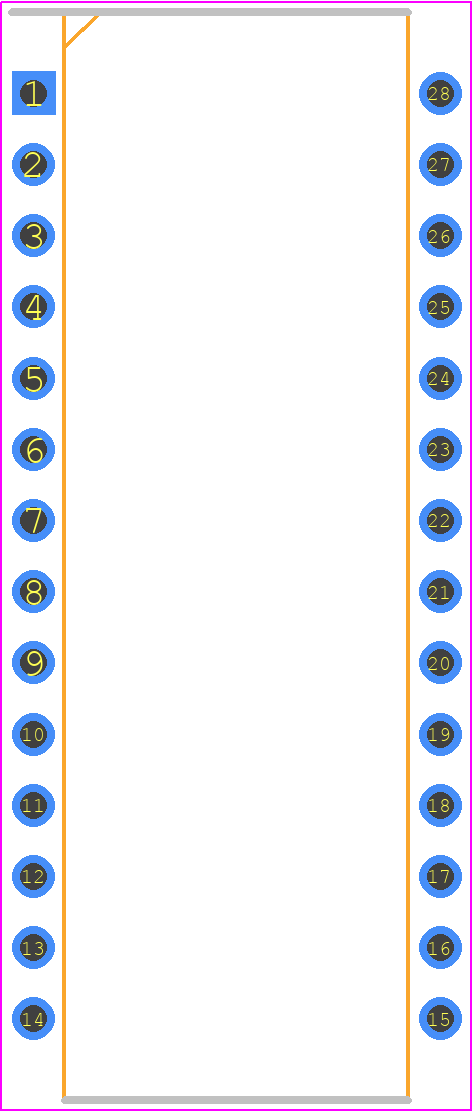

LM8560 - Sanyo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LM8560

3D Models

LM8560 - Sanyo - 3D model - Dual-In-Line Packages - LM8560

Datasheet Download Datasheet
Stock & Prices Price & Stock for LM8560
Part Number LM8560
Manufacturer Sanyo
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - LM8560
Released Date Jan 17, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LM8560 Details

Manufacturer Part Number:
LM8560
Manufacturer:
SANYO Semiconductor Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LM8560 Overview

Use the download button to access the LM8560 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LM856, or try a keyword search, such as Clock ICs
