LM86CIMMX/NOPB - Texas Instruments

Description: ±0.75°C Remote and Local Temperature Sensor with SMBus Interface

Download LM86CIMMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

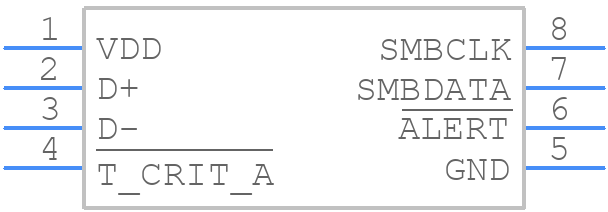

LM86CIMMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM86CIMMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM86CIMMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM86CIMMX/NOPB Details

  • Manufacturer Part Number:

    LM86CIMMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    1.7 mA

  • Operating Temperature-Max:

    125 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER
