Part Image

LM86CIMX/NOPB - Texas Instruments

Description: ±0.75°C Remote and Local Temperature Sensor with SMBus Interface

Download LM86CIMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

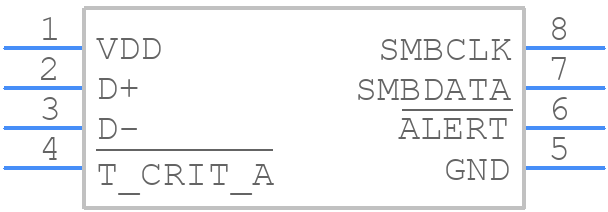

Symbol
LM86CIMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM86CIMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM86CIMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM86CIMX/NOPB Details

  • Manufacturer Part Number:

    LM86CIMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    1.7 mA

  • Operating Temperature-Max:

    125 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM86CIMX/NOPB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LM86CIMX/NOPB is -40°C to 125°C.
  • To configure the LM86CIMX/NOPB for remote temperature sensing, connect the remote diode (e.g., 2N3904) to the VCC pin and the RTH pin, and use the internal diode (D1) as the temperature sensor.
  • The LM86CIMX/NOPB has an accuracy of ±1°C (max) over the operating temperature range of -40°C to 125°C.
  • Yes, the LM86CIMX/NOPB can be used for high-temperature applications up to 125°C, but it's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • The LM86CIMX/NOPB can be interfaced with a microcontroller using an analog-to-digital converter (ADC) to read the temperature data. The output voltage of the LM86CIMX/NOPB is proportional to the temperature, and the microcontroller can convert this voltage to a digital temperature reading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM86CIMX/NOPB Overview

Use the download button to access the LM86CIMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM86C, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
