Texas Instruments provides a recommended PCB layout in the application note SLUA443, which includes guidelines for thermal isolation, trace routing, and component placement to minimize thermal gradients and ensure accurate temperature measurements.
The LM86CIMX has an internal calibration mechanism, but for high-accuracy applications, external calibration may be required. Texas Instruments provides a calibration procedure in the application note SLUA444, which involves measuring the device's output voltage at multiple temperature points and adjusting the internal calibration registers accordingly.
The maximum cable length for the LM86CIMX's remote temperature sensing feature depends on the cable type, noise environment, and desired accuracy. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. However, with proper shielding and noise filtering, longer cable lengths may be possible.
Yes, the LM86CIMX is designed to operate in harsh environments, including high-vibration and high-shock conditions. However, it's essential to follow proper mounting and packaging guidelines to ensure the device's reliability and accuracy. Texas Instruments provides guidance on mechanical design and assembly in the application note SLUA445.
Thermal gradients and thermal resistance can affect the accuracy of the LM86CIMX's temperature measurements. To minimize these effects, it's essential to design the system with thermal management in mind, including the use of thermal interfaces, heat sinks, and thermal insulation. Texas Instruments provides guidance on thermal design and analysis in the application note SLUA446.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM86CIMX Overview

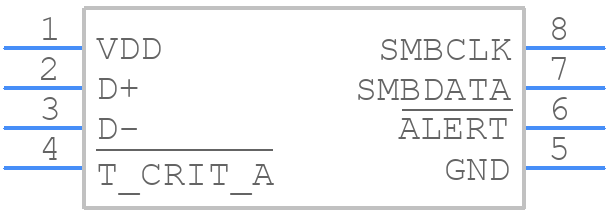

Use the download button to access the LM86CIMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM86C,
or try a keyword search, such as Temperature Sensors
