LM89-1CIMM/NOPB - Texas Instruments

Description: ±0.75°C Remote and Local Temperature Sensor with SMBus Interface

Download LM89-1CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

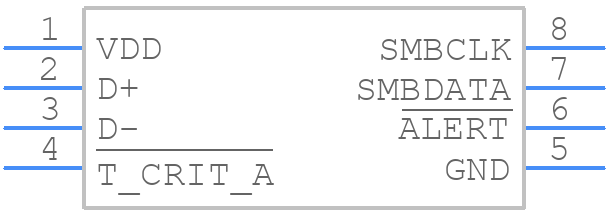

LM89-1CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM89-1CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM89-1CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM89-1CIMM/NOPB Details

  • Manufacturer Part Number:

    LM89-1CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    1.7 mA

  • Operating Temperature-Max:

    125 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM89-1CIMM/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a PCB layout with a solid copper plane underneath the IC to dissipate heat efficiently. Additionally, using thermal vias and a heat sink can further improve thermal performance.
  • To ensure accurate temperature measurement, it's essential to follow proper PCB layout and design guidelines, use a high-accuracy voltage reference, and calibrate the device according to the datasheet instructions.
  • The LM89-1CIMM/NOPB is rated for operation from -40°C to 150°C, but it's recommended to operate within the -20°C to 125°C range for optimal performance and accuracy.
  • Yes, the LM89-1CIMM/NOPB is designed to withstand high-vibration environments, but it's essential to follow proper PCB mounting and design guidelines to ensure reliable operation.
  • The LM89-1CIMM/NOPB provides an analog output, so you'll need to use an analog-to-digital converter (ADC) to interface with a microcontroller or other digital systems. Texas Instruments recommends using a high-resolution ADC for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM89-1CIMM/NOPB Overview

Use the download button to access the LM89-1CIMM/NOPB schematic symbol, PCB footprint, and 3D model.
