Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, follow the recommended compensation network values and layout, and make sure the output capacitor is properly selected and placed. Additionally, ensure that the input and output voltage rails are properly decoupled, and the device is operated within its recommended operating conditions.
The maximum output current capability of the LM9036QMX-5.0/NOPB is 3A, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance to ensure reliable operation.
The LM9036QMX-5.0/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and ensure proper thermal management to prevent overheating and ensure reliable operation.
Use a oscilloscope to monitor the output voltage and current, and check for signs of oscillation or instability. Verify that the input and output voltage rails are within the recommended operating range, and check the compensation network and output capacitor values. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM9036QMX-5.0/NOPB Overview

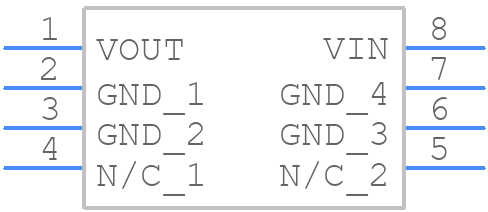

Use the download button to access the LM9036QMX-5.0/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM903,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
