LM9044VX/NOPB - Texas Instruments

Description: Sensor Interface Lambda Sensor Interface Amplifier 20-PLCC -40 to 125

Download LM9044VX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

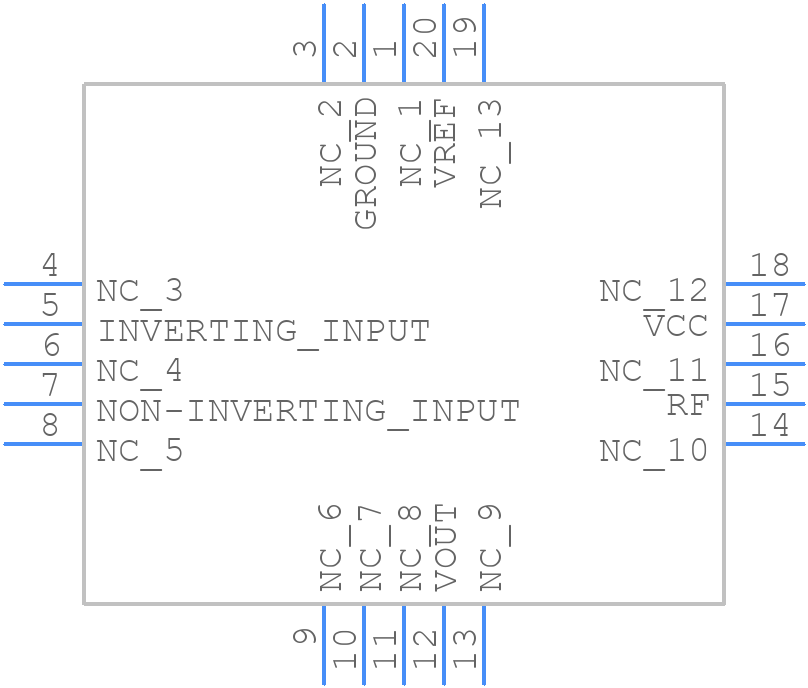

LM9044VX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM9044VX/NOPB - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - FN0020A
click to zoom
3D Models
LM9044VX/NOPB - Texas Instruments - 3D model - Plastic Leaded Chip Carrier - FN0020A
click to zoom

LM9044VX/NOPB Details

  • Manufacturer Part Number:

    LM9044VX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.89 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.89 mm

LM9044VX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the feedback network is properly compensated. If oscillations occur, try adding a small capacitor (e.g. 10nF) between the VOUT and GND pins.
  • The maximum input voltage rating for the LM9044VX/NOPB is 15V, but it's recommended to operate the device within the specified input voltage range (7V to 14V) for optimal performance and reliability.
  • The LM9044VX/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as temperature increases to ensure reliable operation. Consult the datasheet for thermal derating guidelines.
  • The output voltage of the LM9044VX/NOPB is determined by the resistor divider network (R1 and R2) connected between the VOUT and GND pins. Use the formula: VOUT = 1.25V x (1 + R2/R1) to calculate the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM9044VX/NOPB Overview

Use the download button to access the LM9044VX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM904, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
