A good PCB layout for the LM9061M/NOPB involves placing the device near a thermal pad or a heat sink, using a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using a thermal via array under the device can help to dissipate heat more efficiently.
The input capacitor should be chosen based on the input voltage ripple requirement, output voltage, and the desired level of noise filtering. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are good options due to their low ESR and high reliability.
The LM9061M/NOPB can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the LM9061M/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM9061M/NOPB, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, thermal design, and component selection. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM9061M/NOPB Overview

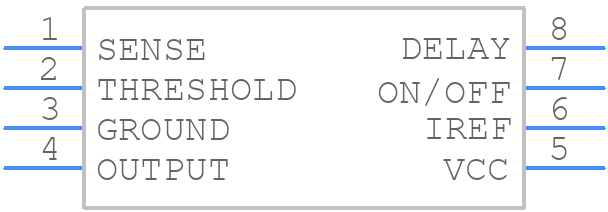

Use the download button to access the LM9061M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM906,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
