A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure a stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines, as well as to decouple the input and output pins properly. Additionally, using a high-quality voltage reference and a low-ESR output capacitor can help minimize output voltage variations.
While the datasheet specifies a maximum input voltage of 12V, it's essential to consider the maximum voltage rating of the specific package and the device's internal voltage regulators. In general, it's recommended to keep the input voltage below 10V to ensure reliable operation and to prevent damage to the device.
The POR and BOR features are designed to ensure the device powers up correctly and resets the system in case of a brown-out event. To handle these features, it's essential to follow the recommended power-up sequencing and to ensure that the input voltage rises monotonically during power-up. Additionally, the system designer should ensure that the reset signal is properly debounced and synchronized with the system clock.
The device's thermal performance is critical to its reliability and lifespan. To prevent overheating, it's essential to ensure good airflow around the device, use a heat sink or thermal pad if necessary, and follow the recommended PCB layout guidelines. Additionally, the system designer should monitor the device's temperature and take corrective action if it exceeds the recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM9076BMAX-5.0/NOPB Overview

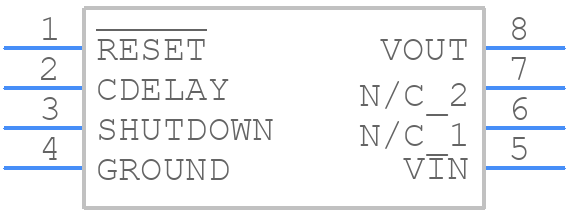

Use the download button to access the LM9076BMAX-5.0/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM907,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
