Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure stability, make sure to follow the recommended component values and layout, and also add a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins to filter out high-frequency noise. Additionally, ensure that the input voltage is within the recommended range and that the output capacitor is of sufficient value and type.
The maximum output current of the LM9076S-5.0 is 1.5A, but it's recommended to derate the output current based on the ambient temperature and the input voltage. Refer to the datasheet for the derating curves and thermal calculations to ensure safe operation.
The LM9076S-5.0 is rated for operation up to 125°C, but it's recommended to derate the output current and ensure proper thermal management to prevent overheating. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
Start by checking the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the component values and layout match the recommended design. Check for signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Texas Instruments support if necessary.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM9076S-5.0 Overview

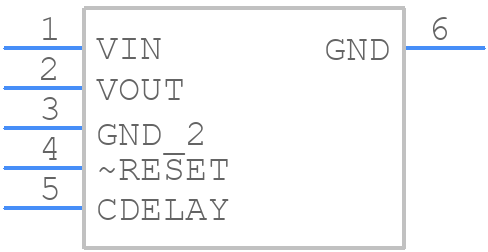

Use the download button to access the LM9076S-5.0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM907,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
