LM95172EWG/NOPB - Texas Instruments

Description: Automotive Grade, ±1°C Temperature Sensor with 200°C Capability and SPI Interface

Download LM95172EWG/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

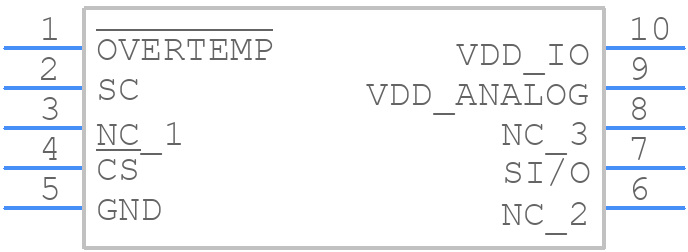

LM95172EWG/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95172EWG/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NAC0010A-1
click to zoom
3D Models
LM95172EWG/NOPB - Texas Instruments - 3D model - Small Outline Packages - NAC0010A-1
click to zoom

LM95172EWG/NOPB Details

  • Manufacturer Part Number:

    LM95172EWG/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    6.12 mm

  • Body Height:

    1.98 mm

  • Body Length or Diameter:

    6.86 mm

  • Housing:

    CERAMIC

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    10

  • Operating Current-Max:

    0.456 mA

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    3-WIRE INTERFACE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOP10,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER

LM95172EWG/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-3 layer board with a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink.
  • To ensure proper biasing, connect the input voltage (VIN) to a stable voltage source, decouple the input with a 10uF capacitor, and connect the output voltage (VOUT) to a load with a minimum of 10uF capacitance.
  • The maximum output current capability of the LM95172EWG/NOPB is 3A, but it can be limited by the thermal performance of the PCB and the ambient temperature.
  • Use a voltage supervisor or a voltage monitor to detect overvoltage and undervoltage conditions, and implement a shutdown or reset mechanism to protect the device and the system.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, as it provides a low equivalent series resistance (ESR) and a high ripple current rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM95172EWG/NOPB Overview

Use the download button to access the LM95172EWG/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM951, or try a keyword search, such as Temperature Sensors
