LM95221CIMM/NOPB - Texas Instruments

Description: ±3°C dual remote & local temperature sensor with beta compensation and SMBus, I2C

Download LM95221CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

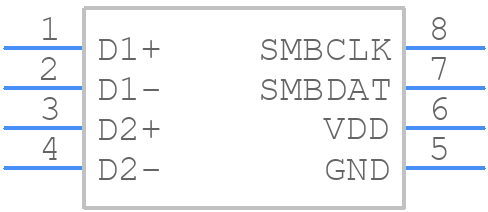

LM95221CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95221CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
LM95221CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK
click to zoom

LM95221CIMM/NOPB Details

  • Manufacturer Part Number:

    LM95221CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    2.6 mA

  • Operating Temperature-Max:

    85 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM95221CIMM/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the thermal pad to the ground plane is recommended for optimal thermal performance.
  • Use a low-pass filter or a shielded cable to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI) effects on the temperature measurement.
  • The maximum cable length for the digital interface is 10 meters (33 feet) to ensure reliable communication.
  • Yes, the LM95221CIMM/NOPB can be used in hot-swap applications, but ensure that the power supply is turned off before inserting or removing the device to prevent damage.
  • Use a precision temperature reference source and a calibration routine to adjust the sensor's offset and gain to achieve high accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM95221CIMM/NOPB Overview

Use the download button to access the LM95221CIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM952, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
