- Part Number LM95234CISD
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN400X400X80-15N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM95234CISD Details
-
Manufacturer Part Number:
LM95234CISD
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LLP-14
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Accuracy-Max (Cel):
2 Cel
-
Additional Feature:
SEATED HEIGTH-MAX
-
Body Breadth:
4 mm
-
Body Height:
0.8 mm
-
Body Length or Diameter:
4 mm
LM95234CISD Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to minimize thermal resistance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
-
The LM95234CISD has a built-in calibration mechanism. Connect the device to a precision temperature source, and use the CAL_MODE pin to enter calibration mode. The device will automatically adjust its temperature reading to match the precision temperature source.
-
The maximum cable length for the I2C interface depends on the clock frequency and the capacitance of the cable. As a general rule, keep the cable length below 10 inches (25 cm) for clock frequencies up to 400 kHz. For longer cable lengths, use a repeater or a buffer to maintain signal integrity.
-
The LM95234CISD has a built-in thermal shutdown feature that disables the device when it exceeds a certain temperature threshold. During power-up or power-down, ensure that the device is not subjected to excessive thermal stress. Use a soft-start circuit or a power sequencing scheme to minimize thermal stress during power transitions.
-
Yes, the LM95234CISD can be used in a hot-swap application. However, ensure that the device is properly powered down before removing or inserting the module to prevent damage from voltage transients. Use a hot-swap controller or a power sequencing scheme to manage the power transitions.
Trust Checks
System Verified
LM95234CISD Overview

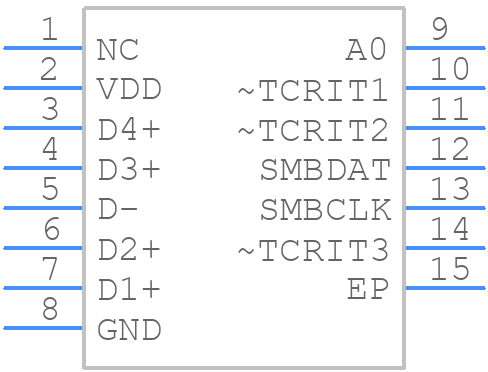

Use the download button to access the LM95234CISD schematic symbol, PCB footprint, and 3D model.
