LM95235CIMM/NOPB - Texas Instruments

Description: ±0.75°C remote & local temperature sensor with SMBus, beta compensation for 65/90n

Download LM95235CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

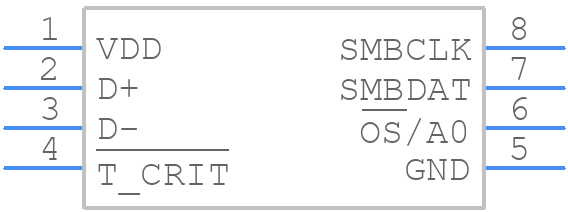

LM95235CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95235CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM95235CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM95235CIMM/NOPB Details

  • Manufacturer Part Number:

    LM95235CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    IT HAS ACCURACY 2 DEGREE CELCIUS

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    90 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM95235CIMM/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the thermal pad to the ground plane is recommended for optimal thermal performance.
  • Use a low-pass filter or a shielded cable to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Also, consider using a differential measurement setup to reduce common-mode noise.
  • The maximum cable length for the remote temperature sensor is 10 meters (33 feet) to ensure accurate temperature measurements. Longer cable lengths may introduce errors due to signal attenuation and noise.
  • Yes, the LM95235CIMM/NOPB is rated for operation up to 125°C (257°F). However, ensure that the device is properly heat-sinked and follow the recommended PCB layout guidelines to prevent thermal shutdown.
  • Calibrate the temperature sensor by comparing the device's output to a known temperature reference point using a precision thermometer. Apply the calibration data to the device's internal calibration registers.
